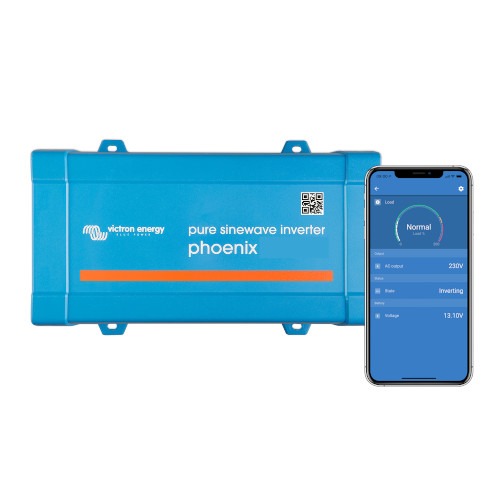

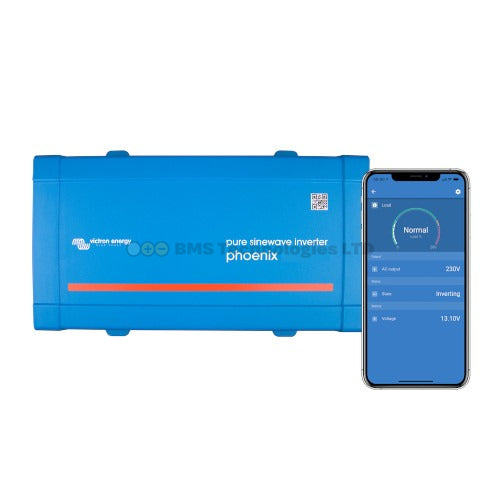

The Phoenix 12/1200 VE.Direct inverter allows you to power domestic equipment – requiring 230V – using ‘leisure' or ‘automotive' batteries rated at 12V, 24V or 48V DC. This unit has the IEC plug.
Features of the Phoenix Inverter 12/1200 VE.Direct VE.Direct communication port The VE.Direct port can be connected to:
A computer (VE.Direct to USB interface cable needed) Apple and Android smartphones, tablets, MacBook's and other devices (VE.Direct Bluetooth Smart dongle needed)
Fully configurable:
Low battery voltage alarm trip and reset levels Low battery voltage cut-off and restart levels Dynamic cut-off: load dependent cut-off level Output voltage 210 – 245V Frequency 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level
Monitoring:
In- and output voltage, % load and alarms
Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The Phoenix Inverter 12/1200 VE.Direct are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High start-up power Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO mode When in ECO mode, the Phoenix Inverter 12/375 VE.Direct will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.
Remote on/off A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.
DC connection with screw terminals No special tools needed for installation.
Monitor, operate & control your system VictronConnect lets you get live status information and configure your Phoenix Inverter 12/1200 VE.Direct when connected to a VE.Direct Bluetooth Smart Dongle.
The REC040010210R is the correct controller for the Phoenix Inverter VE.Directs.
