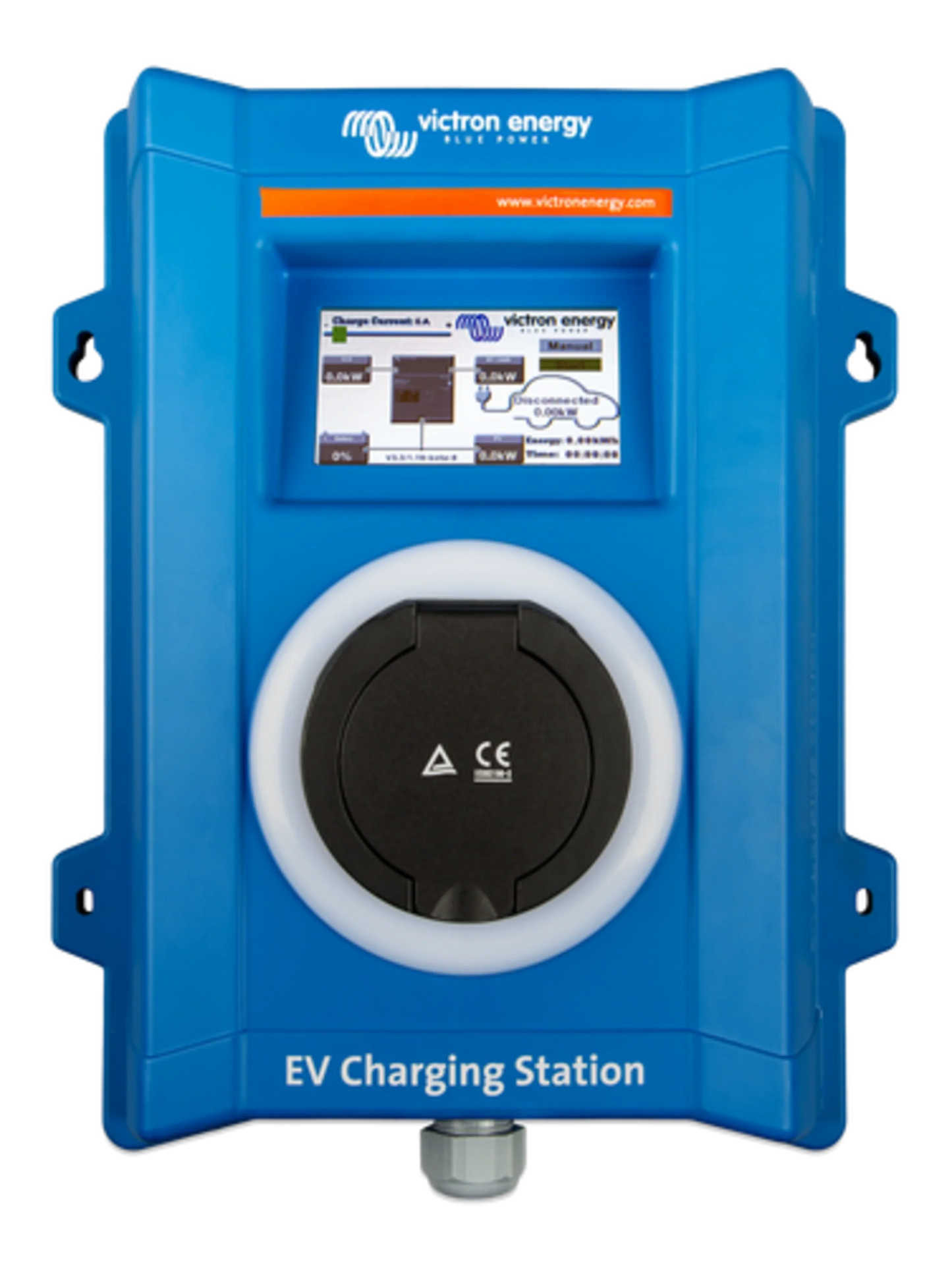

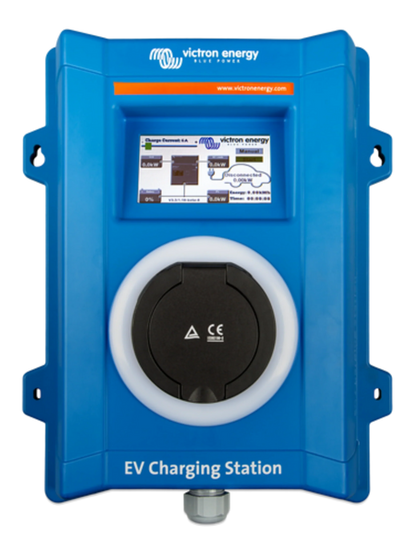

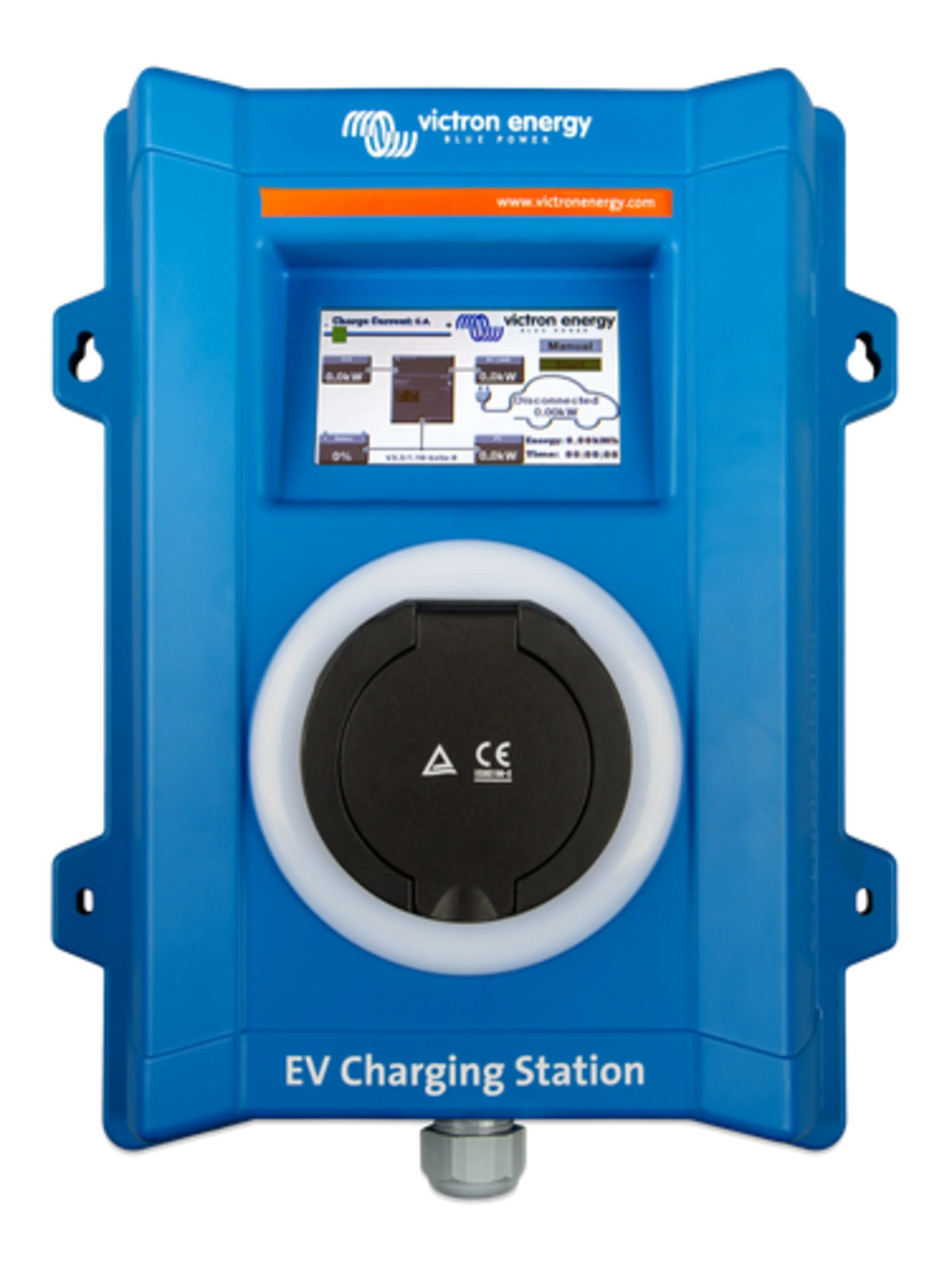

The EV Charging Station has three phase and single-phase capabilities. It delivers maximum 22kW AC in three phase mode or 7.3kW in single phase mode.
It incorporates 4.3-inch LCD touch screen for monitoring and control.

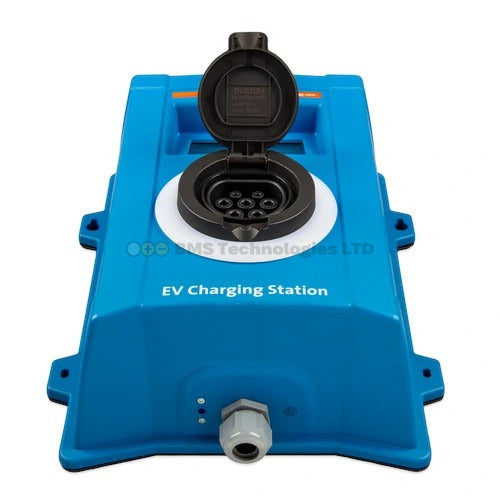

Fully programmable RGB Light Ring around charging port, to quickly determine the device state.
It can be programmed from the web interface to display different light effects based on the current state (disconnected, charging, charged etc.). The objective is to help the user see the current state from a distance.
Features
High power EV Charging Station
The EV Charging Station has three phase and single-phase capabilities. It delivers maximum 22kW AC in three phase mode or 7.3kW in single phase mode.
Wi-Fi Communication
Wi-Fi: 802.11 b/g/n for configuration and monitoring.
The internal Wi-Fi module can be configured in Access Point mode or Station mode for both the initial setup and monitoring.
LCD Touch Screen
It incorporates 4.3-inch LCD Touch Screen for monitoring and control.
Light Ring for fast viewing the device state
Fully programmable RGB Light Ring around charging port, to quickly determine the device state.
It can be programmed from the web interface to display different light effects based on the current state (disconnected, charging, charged etc.). The objective is to help the user see the current state from a distance.
Two working modes available:
Manual Mode to configure output current
Manual mode allows configurable output current between 6-32A.
The charging power is controlled in two ways: by using the slider on the LCD touch screen or by using its web page. It allows to manually start or stop the charging process when a vehicle is connected to the charging station.
Automatic Mode to ensure maximum PV system efficiency
It detects when excess power is available and uses only that power to charge the vehicle.
Integration with GX devices
The EV Charging Station can be configured and monitored from the GX screen devices and Remote Console.
Integration with VRM
Several options are available in the VRM Portal: real time reports, custom reports for configurable time periods, advanced functions such as remote firmware update.
