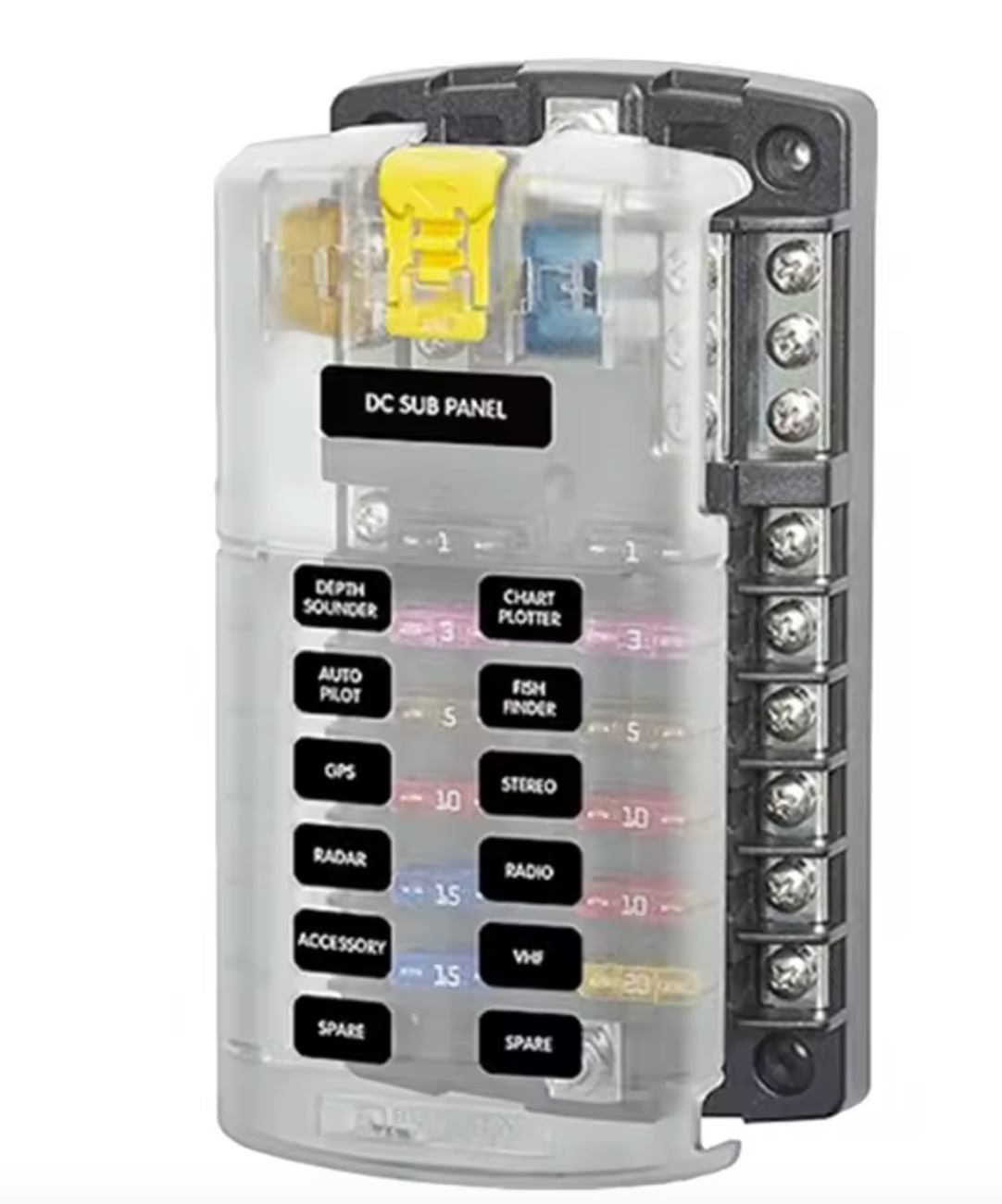

Skyenergi 5026 ST Blade Fuse Block – 12 Circuit with Negative Bus

The Skyenergi 5026 ST Blade Fuse Block offers a compact and efficient solution for distributing power across up to 12 fused circuits. Featuring a built-in 12-way negative busbar, it eliminates the need for an external return bus, simplifying installation and keeping all connections easily accessible for streamlined maintenance and fault-finding.

Ideal for marine, automotive, and off-grid applications, this high-quality fuse block is built for reliability in demanding environments.

🔧 Key Features:

• 12 Fused Circuits with Common Feed
  All circuits are fed from a single input busbar, saving space and reducing wiring complexity.

• Integrated Negative Busbar
  Built-in 12-way return busbar for connecting negative wires—no need for additional external components.

• Durable, Marine-Grade Construction
  Tin-plated copper fuse clips and busbars offer excellent corrosion resistance and conductivity. Compatible with ring or fork terminals.

• Clear Push-Latch Cover
  Transparent protective cover with an easy push-button release. Also includes storage for two spare fuses.

• Compact & Centralised Design
  Keeps fusing and return wiring in one place, making system layout clean and fault diagnostics simple.

🔋 Specifications:

• Maximum Voltage: 32V DC

• Maximum Current per Circuit: 30A

• Total Block Rating: 100A

• Fuse Type: Standard Blade (ATO/ATC)

Includes blank labels
