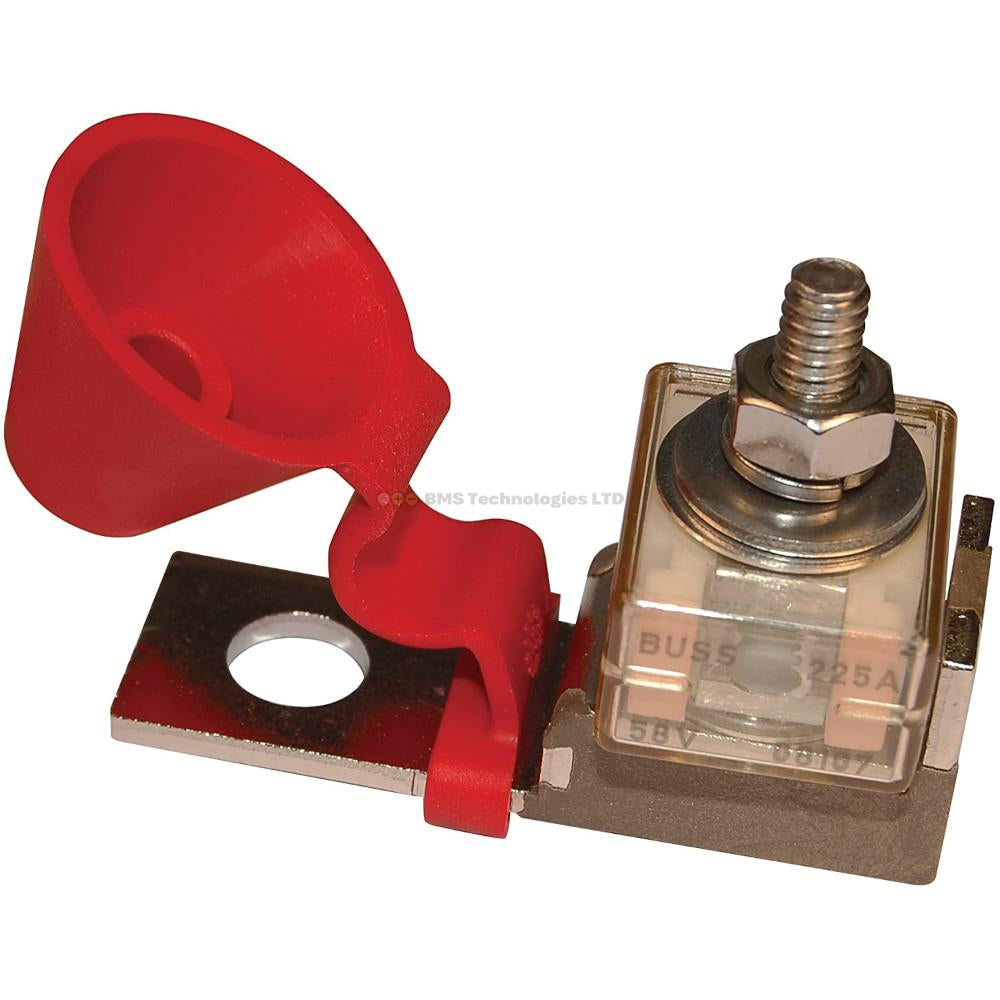

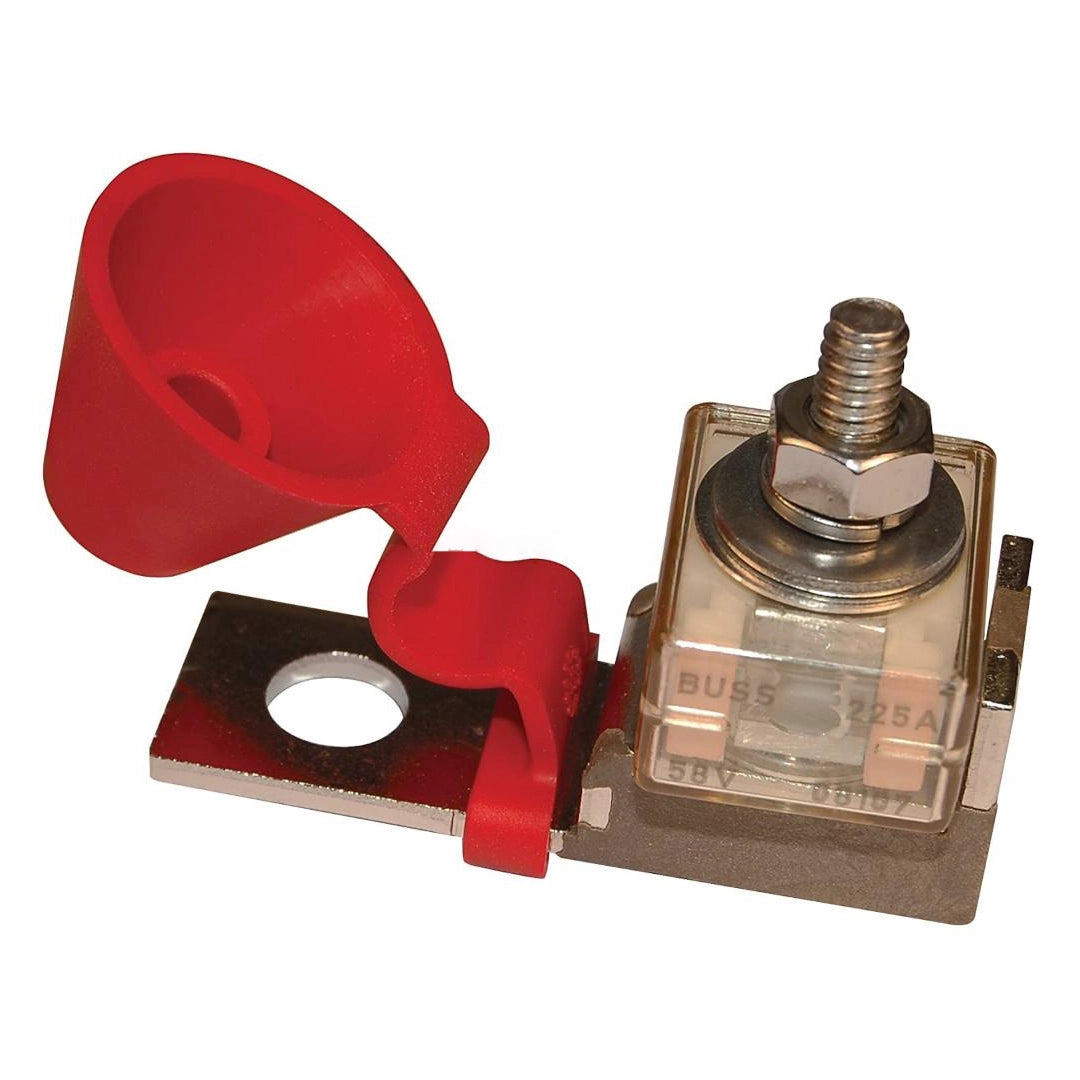

​The Skyenergi MRBF Terminal Fuse Block is a compact, high-amp fuse holder designed to protect DC electrical circuits in applications such as main circuit protection, inverters, windlasses, and bow thrusters. Its space-saving design allows for high current protection in areas with tight space constraints
Key Features:

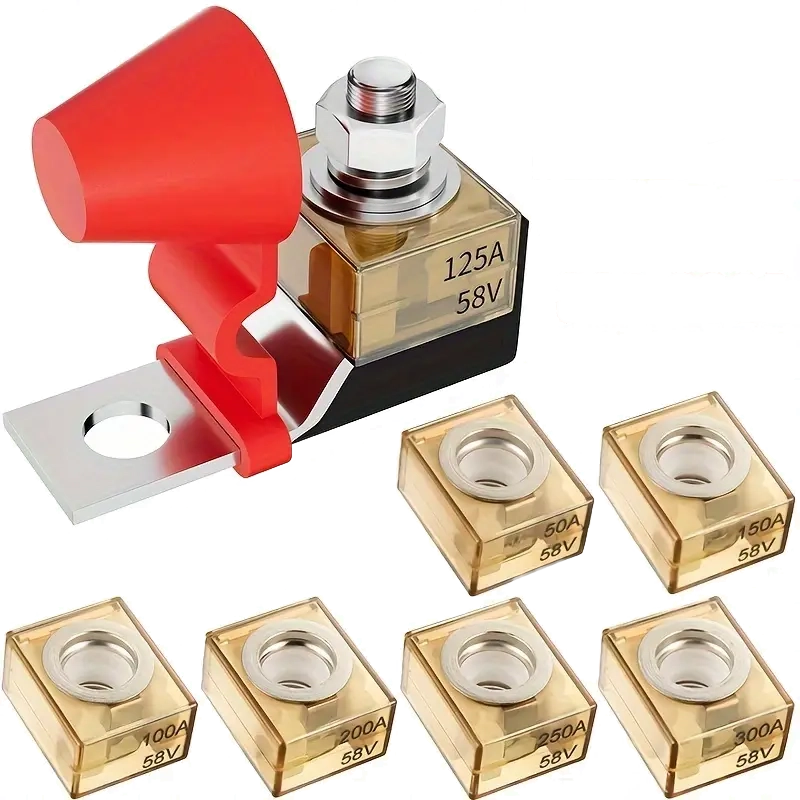

High Current Protection: Accommodates Marine Rated Battery Fuses (MRBF) ranging from 30A to 300A, providing robust protection for high-amperage circuits. ​

Compact Design: Ideal for installations where space is limited, ensuring efficient use of available area. ​
Ignition Protected: When used with Skyenergi Systems' MRBF fuses, the fuse block is ignition protected, making it safe for installation in environments where explosive gases may be present. ​

Isolated Stud Design: Utilizes standard M8 (5/16") hardware and permits stacking of terminals, facilitating organized and secure connections. ​

Insulating Cap: Comes with an insulating cap to prevent accidental shorts, enhancing safety during operation. ​

Specifications:
Maximum Voltage: Rated for up to 58V DC. ​
Terminal Stud Size: M8 (5/16"). ​
Maximum Torque: 75 in-lb (8.47 Nm). ​
Weight: Approximately 0.16 lb (0.07 kg). ​

Installation Considerations:
Fuse Compatibility: Designed for use with MRBF fuses, which are sold separately. ​
Mounting: Mounts directly on 3/8” terminal studs, providing a secure and stable installation. ​
