BS-9001E-BSS

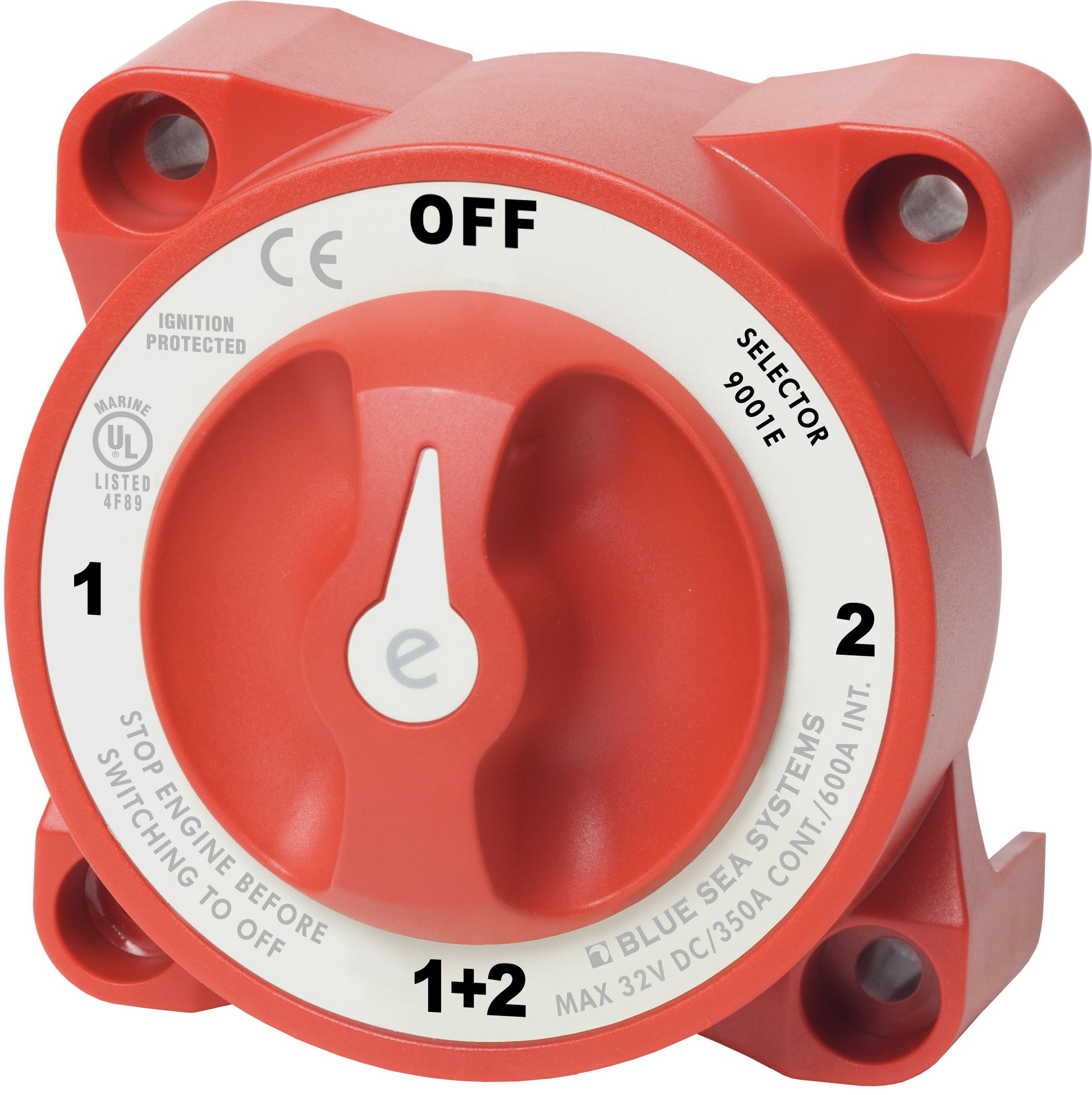

Blue Sea e-Series Selector Battery Switch - 9001E

Blue Sea e-Series Selector Battery Switch - 9001E

£42.36
£42.36
Sale Sold out
VAT Included. Shipping calculated at checkout.

In stock
  • Customer Focused
  • Competitive Prices
  • Fast Delivery
  • Telephone & eMail Support
  • Manufacturers & Distributors
  • Bespoke Systems Options

Found this item cheaper? Contact our customer sales team and we'll look to price match.

Switches isolated battery banks to all loads or combines battery banks to all loads
Make-before-break contact design allows switching between battery banks without power interruption
Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting
Switch Type – Selector 4 Position
Color – Red
Switch Positions – 4
Battery Combine – Yes
Alternator Field Disconnect – No
Maximum Voltage – 32V DC
Terminal Stud Torque – 140 in-lb (15.82 Nm)
Continuous Rating – 350A
Intermittent Rating – 600A (5 min)
Cranking Rating 30 sec – 1200A
Battery Inputs – 2
Cable Clearance For 4/0 AWG Cables – 1.10in (27.94 mm)
Cable Size to Meet Ratings – 4/0 AWG (120mm²)
Mounting Holes – Accept 1/4″ (M6) Screw
Stud Material – Tinned Copper
Terminal Stud Size – 3/8″ – 16 (M10)
Weight – 1.15lb (0.52 kg)
Weight – 1.30lb (0.59 kg)

Specification
