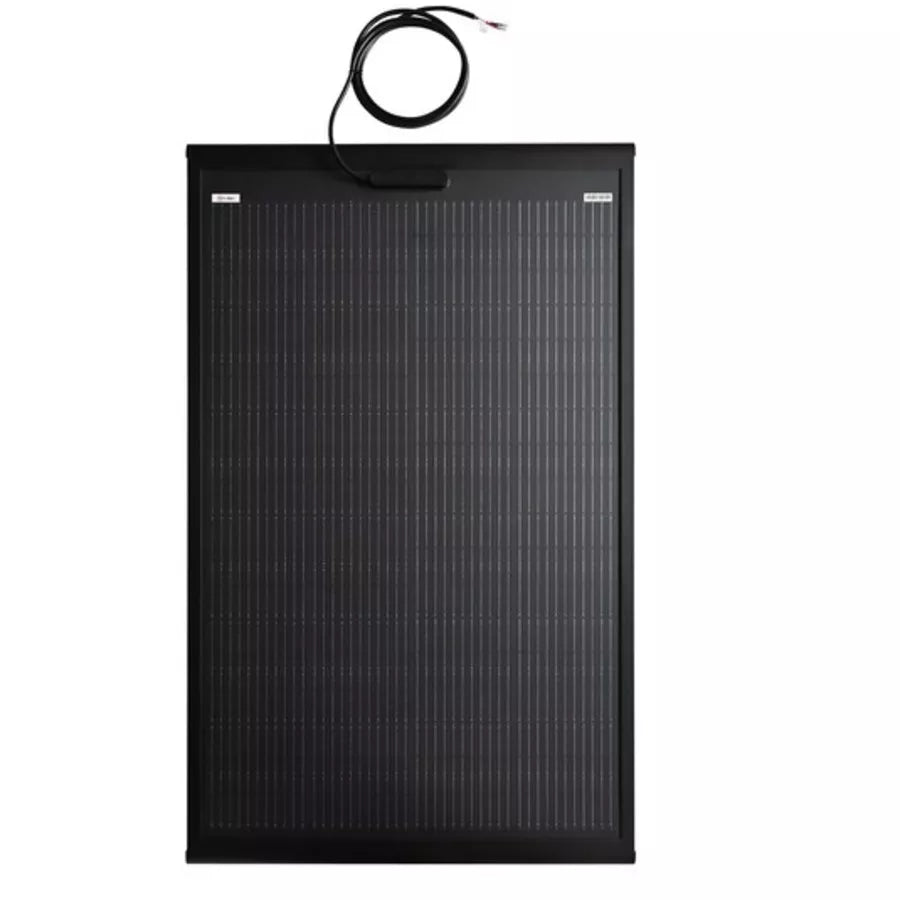

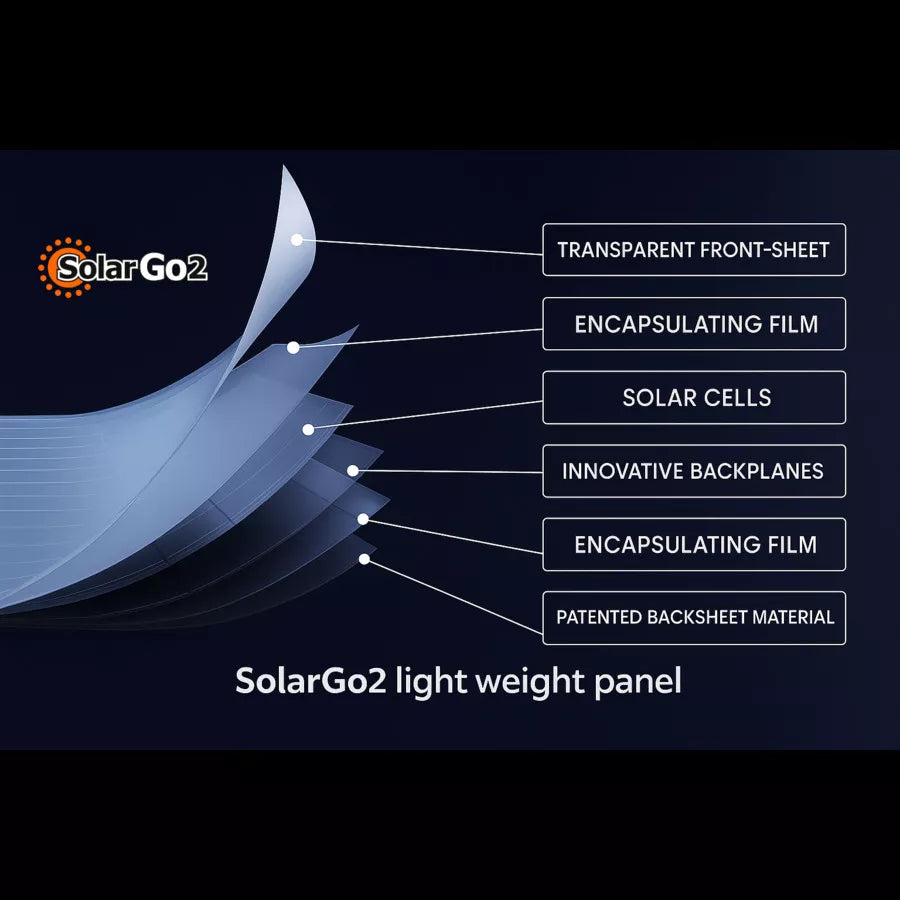

A lightweight, high‑performance solar panel weighing just 5.4 kg including fixing brackets. Its slim, non‑glass construction and integrated mounting brackets make installation fast, secure, and hassle‑free. A‑Grade Monocrystalline PERC cells deliver excellent efficiency, supported by a robust aluminium frame for added strength and a clean, modern finish. The patented low‑conductivity backplate helps regulate temperature, ensuring consistent, long‑term performance.
Ideal for motorhomes, campervans, boats, and off‑grid systems where weight, height, and aerodynamics are essential. Backed by a 10‑year warranty for complete peace of mind.
Why use a Lightweight panel?
Far lighter and easier to lift, handle, and mount than heavy glass panels.
Runs cooler with a low conductivity backplate keeps cells cooler for better sustained efficiency.
Faster installation with its integrated mounting brackets means quicker, cleaner fitting.
More durable on the move no glass to crack from vibration, flex, or impact.

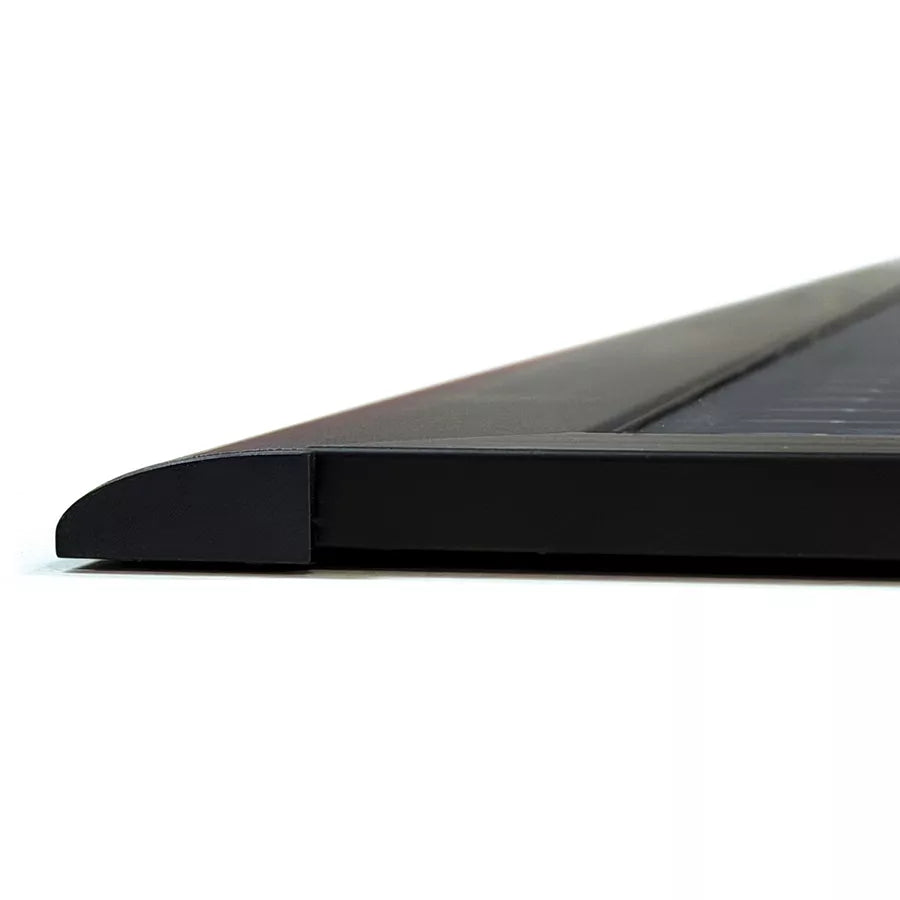

Sleek, low profile design that sits closer to the surface for better aerodynamics and a cleaner look.
Reliable warranty coverage 20-year* cell warranty and 10-year** product warranty for peace of mind.
| Electrical Characteristics |
| Type |
Monocrystalline (A Grade,High efficiency) |
| Peak power (Pmax) |
170Wp |
| Power tolerance range (%) |
±5% |
| Open circuit voltage / Voc (V) |
24.4v DC |
| Max. power voltage / Vmp (V) |
20.9v DC |
| Short circuit current / Isc (A) |
8.54A |
| Max power current / Imp (A) |
8.14A |
| Maximum System Voltage (V) |
1000V DC |
| Above Specification at standard test conditions(STC):1000W/㎡, cell temperature 25°C, AM1.5 |
| Panel Info |
| Part number |
SPLW170 |
| Power |
170Wp |
| Cable type |
2.5mm twin core Red / Black (UV stable) |
| Cable length |
3m |
| Frame Material |
Aluminium |
| Dimensions (mm) |
1315 x 807 x 12mm |
| Weight (Kg) |
5.2 |
| Performance UK weather (weather dependant) |
| Average expected winter |
≈ 6.51Ah (136Wh) per day (0.8h) |
| Average expected Summer |
≈ 48.84Ah (1020Wh) per day (6h) |
| Warranty |
| Performance (of cells |
20 years (at 80% of day 1 performance) |
| Product construction |
10 Years |
