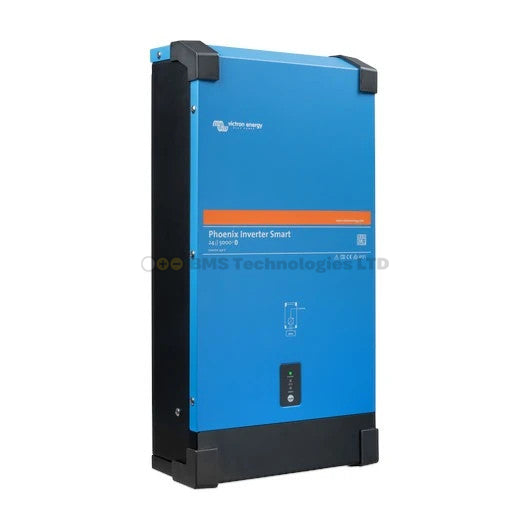

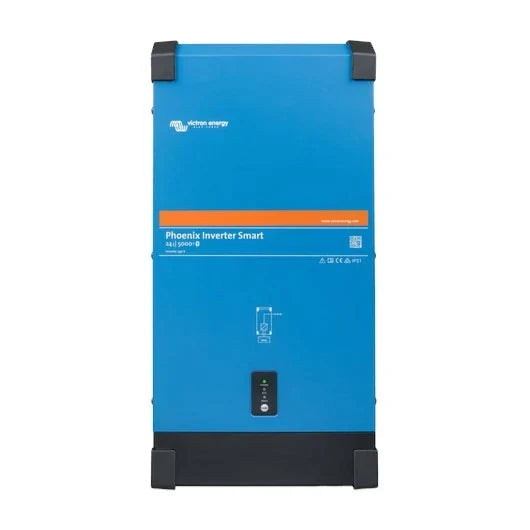

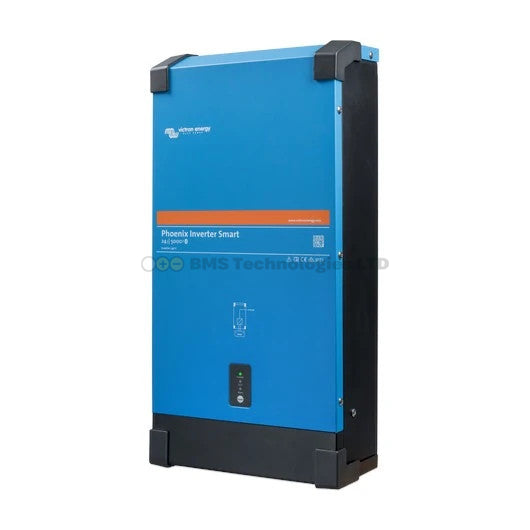

Victron Energy PIN242501000


The Phoenix Inverter 24/5000 Smart is an efficient and reliable inverter. Built on our proven and field tested Phoenix Inverter platform, it now comes with a new slimmer design and full metal casting. Models are available in 1600VA, 2000VA and 5000VA for 12,24 or 48V systems.

It's powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave.

Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.

Bluetooth is built-in, and makes setting up your high power inverter easier than ever before.


Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode and more, all from within VictronConnect.

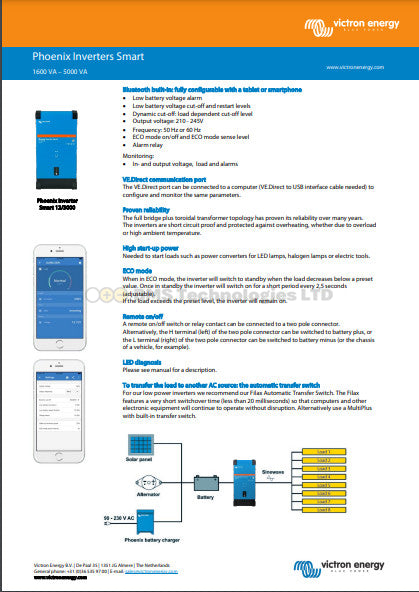

Features


Bluetooth built-in: fully configurable with a tablet or smartphone


Low battery voltage alarm


Low battery voltage cut-off and restart levels


Dynamic cut-off: load dependant cut-off level


Output voltage: 210 – 245V


Frequency 50 Hz or 60 Hz


ECO mode on/off and ECO mode sense level


Alarm relay

Monitoring


In- and output voltage, load and alarms

VE.Direct communication port


The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters.


Virtually unlimited power thanks to parallel and 3-phase operation capability


Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.

Proven reliability


The full bridge plus toroidal transformer topology has proven it's reliability over many years. The Phoenix Smart Inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.


High start-up power


Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode


When in ECO mode, the inverter will switch to standby when the loads decreases below a preset value. Once in standby the inverter will switch on for a short period every 2.5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on.

Remote on/off


A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

To transfer the load to another AC source: the automatic transfer switch


For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch.

Control over system

Want to have perfect control over your system from wherever you are whilst using your Phoenix Inverter 24/5000 Smart, why not have a look at the Cerbo GX. Simply connect through the Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch, a MFD or the VictronConnect App thanks to it's added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.
