SRNE Shiner 2430 MPPT Solar Charge Controller
The SRNE Shiner 2430 is a high-performance MPPT solar charge controller designed for 12V and 24V battery systems. Using advanced Maximum Power Point Tracking technology, it captures and converts solar energy with over 99% tracking efficiency, ensuring maximum power harvest from your solar panels.
Engineered for reliability, the Shiner 2430 supports multiple battery chemistries including lead-acid, gel, AGM, and lithium. It intelligently adjusts charging parameters to suit the battery type, extending battery life and improving system performance.
Compact, efficient, and durable, this controller features a natural cooling design with comprehensive protection functions such as over-temperature, reverse-connection, short-circuit, and over-voltage safeguards.
Ideal for campervans, motorhomes, boats, cabins, and off-grid solar installations, the SRNE Shiner 2430 delivers dependable and efficient energy conversion in any environment.
Warranty: 3 Years
The SRNE Shiner 2430 MPPT has built in bluetooth technology for connection to the SRNE iPhone and Android App. In addition the system is expandable to connect to the all in one control system SRNE CU2 which can monitor and control your complete AC and DC power Eco system.
2 x Solar Panel: Victron Energy 12V 185W Mono Series (1485x668x30mm each.)
-
Type: Monocrystalline panel – high efficiency and better low-light performance.
-
Construction: Tempered glass, aluminium frame, bypass diodes to prevent shading loss.
-
Warranty: 25 years performance / 5 years materials.
Good Fit For: Small off-grid systems, portable setups, or permanent mounting on camper/boat roofs.
Cabling: Victron Solar Cable 10m, 6mm² MC4-M/F
Good Fit For: Reliable plug-and-play solar connections.

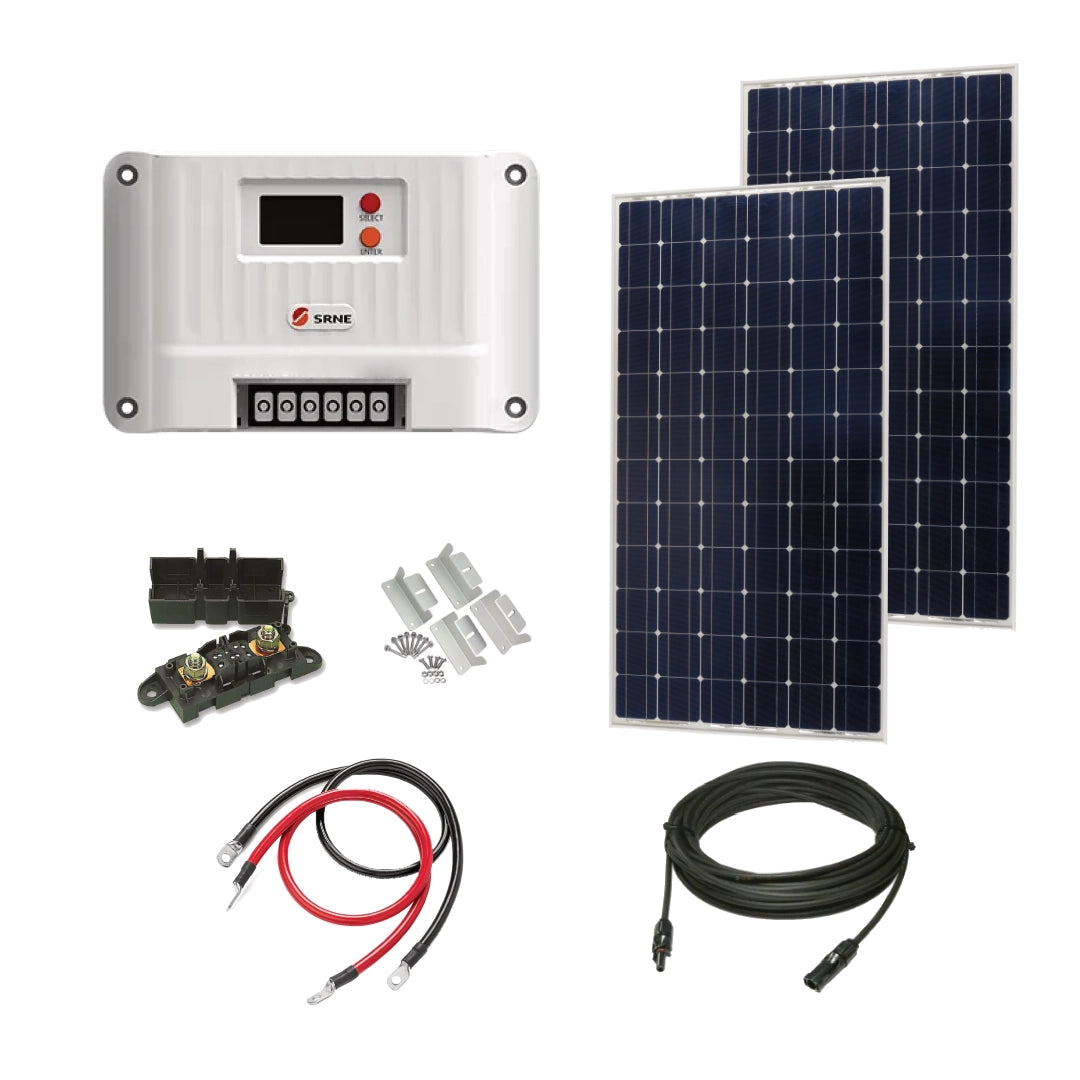

What's in the kit?
| Victron 185W Monocrystalline Solar Panel - 12V (1485mm x 668mm x 30mm) |
SPM041851200 |
2 |
| SRNE Shiner 2430 MPPT |
SR-SHINER2430 |
1 |
| Solar Mount Z Brackets |
SE-ZBRACKET |
1 |
| Solar Panel Entry Gland |
SE-CABGNW |
1 |
| Solar Extension PAIR OF 5M Solar Extension cables complete with MC4 one end |
SCA001000100 |
1 |
| Midi Fuse Holder |
SE-CIP000050001 |
1 |
| Midi Fuse 40A 32V |
SE-MIDI40 |
1 |
| Photovoltaic Solar Cable 6mm |
SE-6MMPSC |
2 |
| Y23 14mm Yellow Pre-Insulated Pin Connectors (Pack of 10) |
SE-Y23CONNECTOR(PACK OF 10) |
1 |
| Y7 Yellow Pre-Insulated Terminals - 8.5mm Hole (Pack of 10) |
SE-Y7CONNECTOR(PACK 10) |
1 |
