SRNE Shiner 2430 MPPT 30A with Bluetooth

SRNE Shiner 2430 MPPT 30A with Bluetooth

Regular price £99.00
Sale price £99.00 Regular price £0.00
Sale Sold out
VAT Included. Shipping calculated at checkout.

In stock

  • Customer Focused
  • Competitive Prices
  • Fast Delivery
  • Telephone & eMail Support
  • Manufacturers & Distributors
  • Bespoke Systems Options

Found this item cheaper? Contact our customer sales team and we'll look to price match.

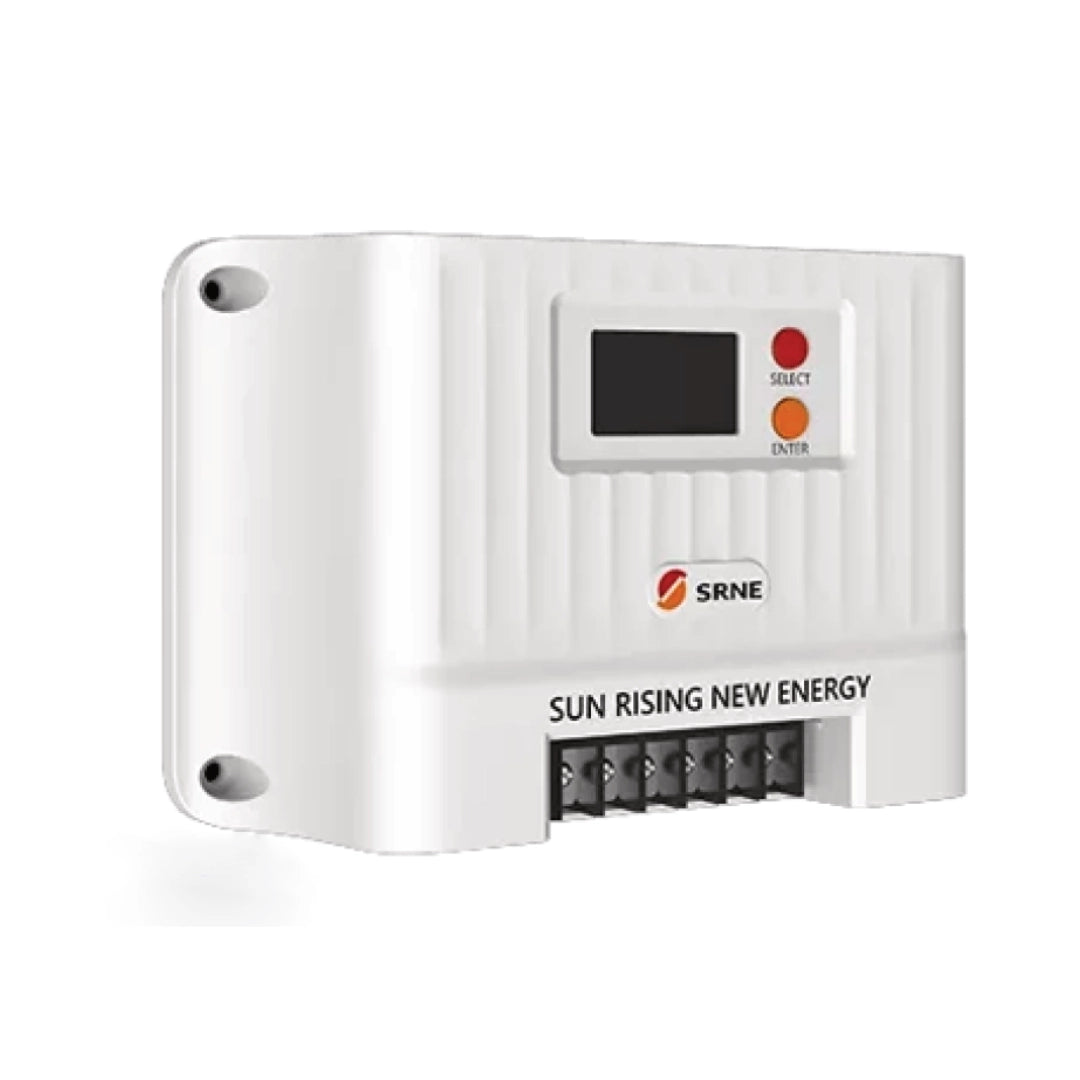

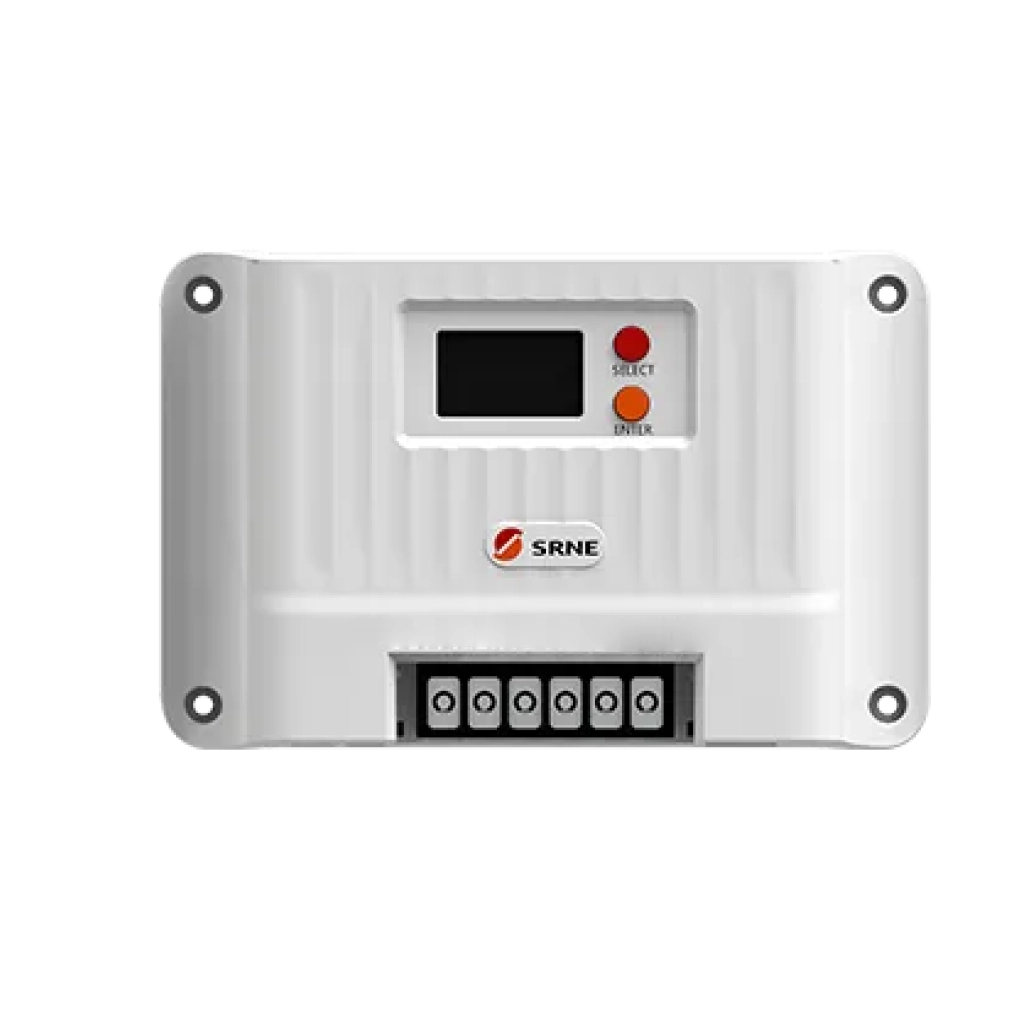

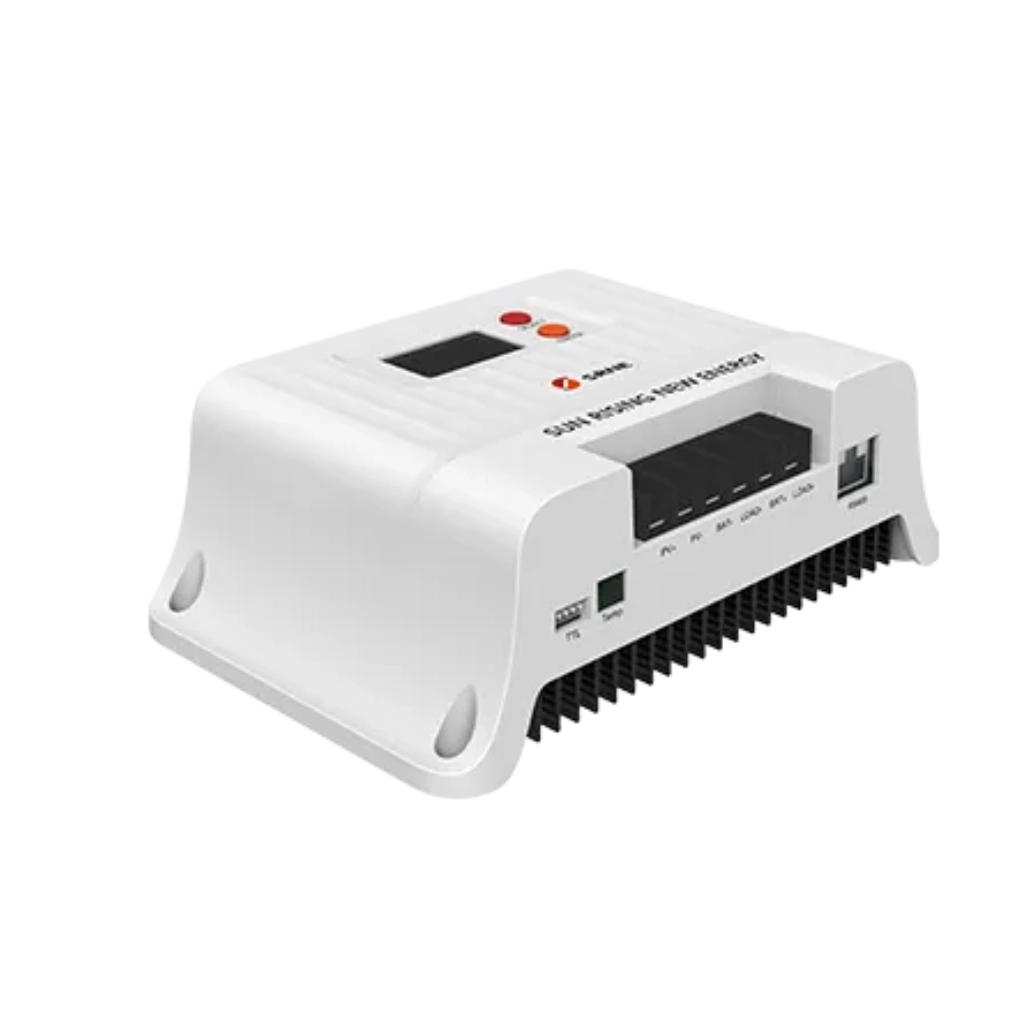

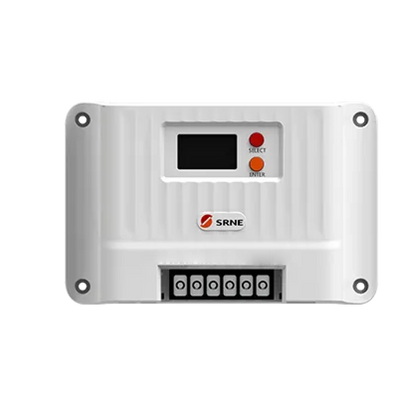

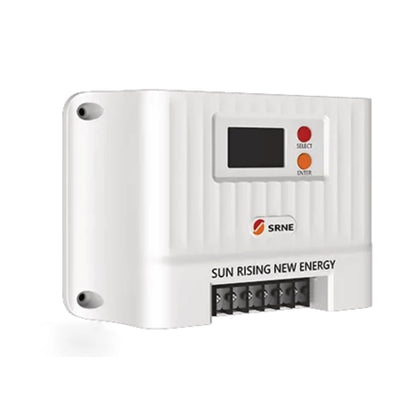

SRNE Shiner 2430 MPPT Solar Charge Controller

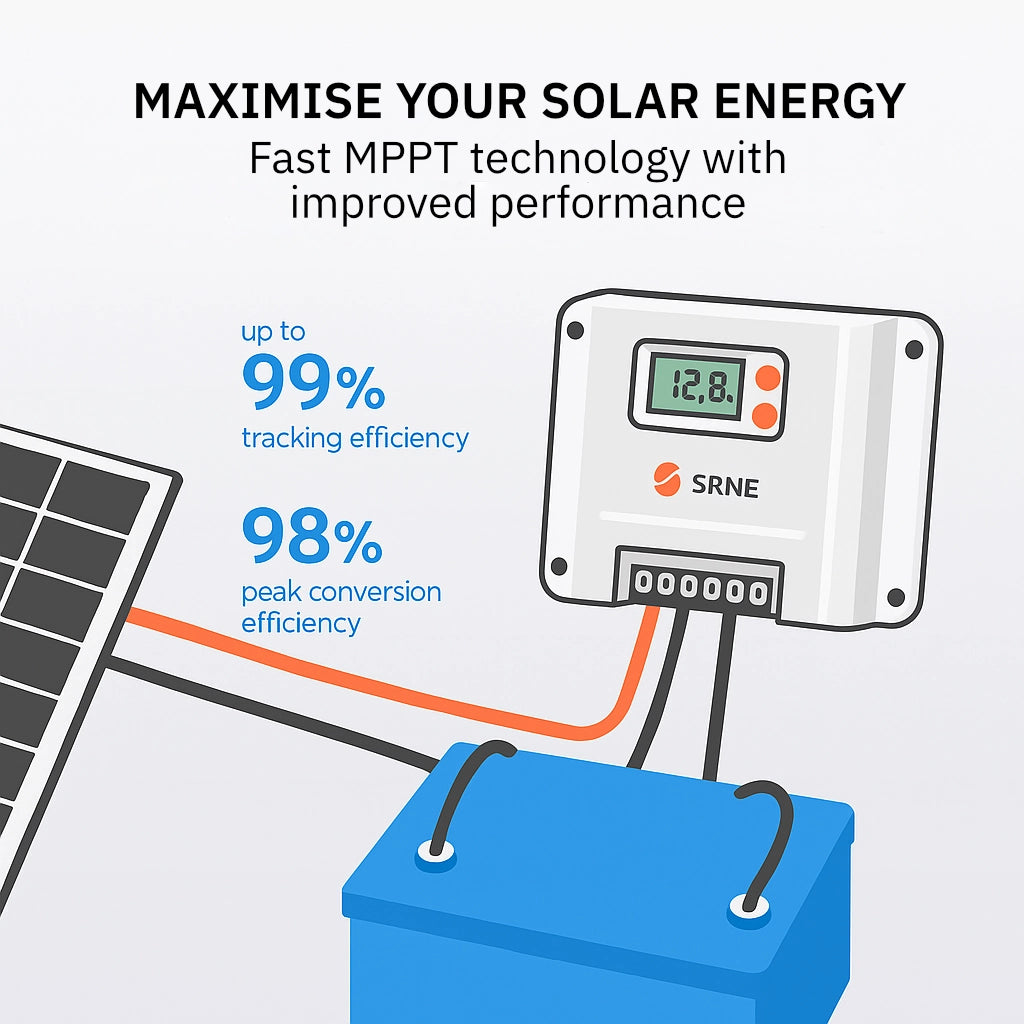

The SRNE Shiner 2430 is a high-performance MPPT solar charge controller designed for 12V and 24V battery systems. Using advanced Maximum Power Point Tracking technology, it captures and converts solar energy with over 99% tracking efficiency, ensuring maximum power harvest from your solar panels.

Engineered for reliability, the Shiner 2430 supports multiple battery chemistries including lead-acid, gel, AGM, and lithium. It intelligently adjusts charging parameters to suit the battery type, extending battery life and improving system performance.

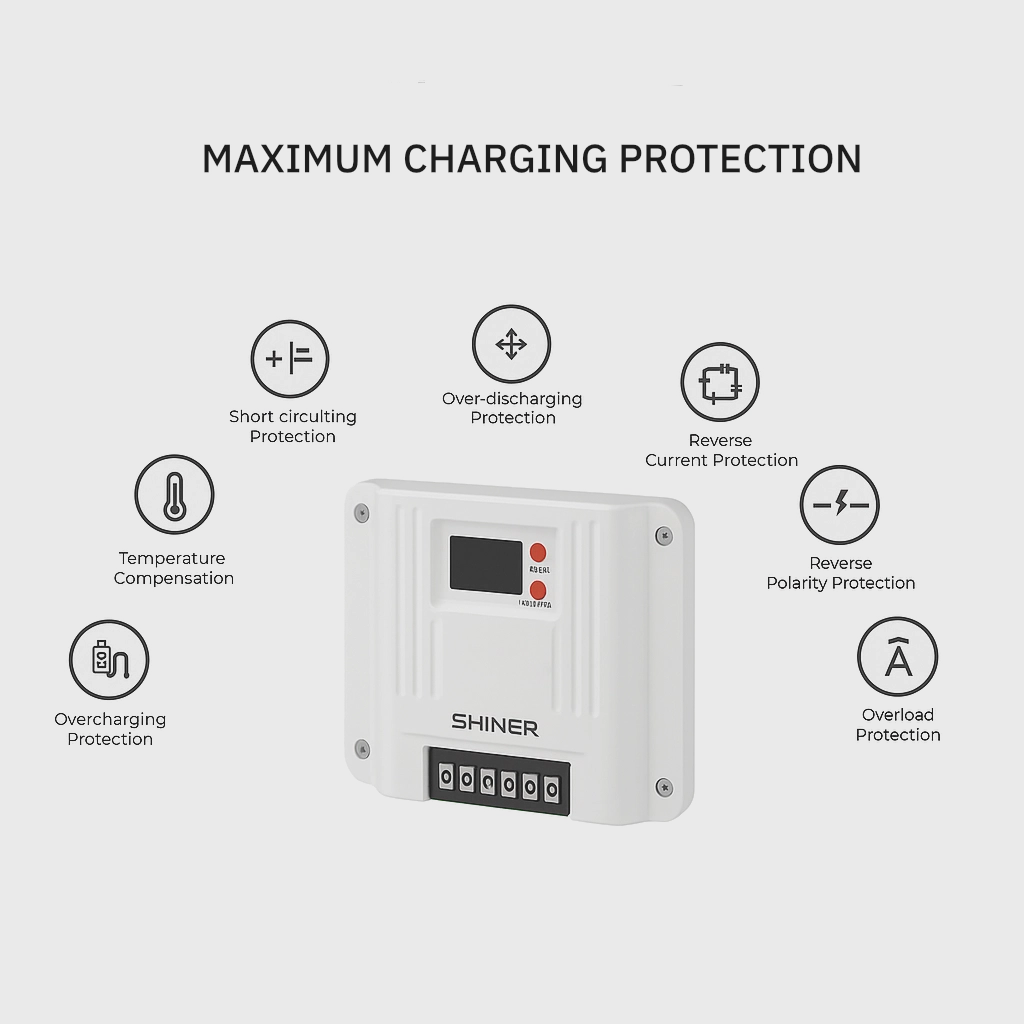

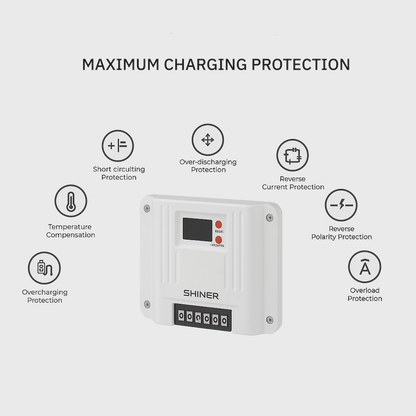

Compact, efficient, and durable, this controller features a natural cooling design with comprehensive protection functions such as over-temperature, reverse-connection, short-circuit, and over-voltage safeguards.

Ideal for campervans, motorhomes, boats, cabins, and off-grid solar installations, the SRNE Shiner 2430 delivers dependable and efficient energy conversion in any environment.

Warranty: 3 Years

The SRNE Shiner 2430 MPPT has built in bluetooth technology for connection to the SRNE iPhone and Android App.  In addition the system is expandable to connect to the all in one control system SRNE CU2 which can monitor and control your complete AC and DC power Eco system.

Specifications

Parameter Specification
Model Shiner 2430
System Voltage 12 V / 24 V Auto Recognition
Rated Charging Current 30 A
Rated Load Current 20 A
Max PV Open-Circuit Voltage 100 V DC
MPPT Operating Voltage Range Battery Voltage + 2 V to 72 V DC
Max PV Input Power 400 W (12 V) / 800 W (24 V)
MPPT Tracking Efficiency > 99%
Conversion Efficiency Up to 98%
Battery Types Sealed, Gel, Flooded, Lithium, User-Defined
Load Control Modes Light Control, Time Control, Manual, Debugging, Normally Open
Communication Options RS485 (Standard), CAN / Bluetooth
Cooling Method Natural Convection (No Fan)
Protection Features Over-Temperature, Over-Current, Reverse Polarity, Short-Circuit, Over-Voltage
Protection Rating IP32
Operating Temperature -35 °C ~ +65 °C
Dimensions (L × W × H) 187 × 133 × 72 mm
Weight Approx. 1.2 kg

Specification

We Accept

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • Shop Pay
  • Visa
View full details

UK distributors of SRNE RV products.

As a trusted name in renewable and off-grid energy solutions, SkyEnergi proudly represents SRNE’s innovative range of RV and motorhome power systems throughout the United Kingdom. Our partnership with SRNE allows us to deliver high-quality, reliable, and efficient energy products designed specifically for leisure, marine, and off-grid applications.

Take full control of your system.

Connect your SRNE system to your existing Wi-Fi network and take full remote controlof your setup — anytime, anywhere. Through the SRNE App, you can monitor battery status, tank levels, and solar performance in real time. You also have the ability to switch lights on or off,control inverters, activate AC chargers, and manage a range of other connected devices effortlessly. Whether you’re on the road, at home, or miles away from your vehicle, SRNE’s intelligent connectivity keeps you fully in charge of your off-grid power system.

360º System

SRNE RV Solutions offer a complete 360º power system designed specifically for motorhomes, campervans, and off-grid applications. The range integrates solar charging, DC-DC charging, inverter functionality, and intelligent battery management into one seamless system — providing reliable, efficient, and smart energy control wherever your journey takes you. Whether you’re travelling, camping, or living off-grid, SRNE RV Solutions deliver the freedom and confidence of a fully integrated power setup.

All at your finger tips!

Monitor and control your entire SRNE system with ease using the RMA4 or RMA7 touch screen display panels. These intuitive interfaces provide real-time data on charging, battery status, and system performance, allowing you to stay informed at a glance. For added convenience, you can also connect via the SRNE Bluetooth and Wi-Fi enabled mobile app, giving you full access to system monitoring and configuration directly from your smartphone or tablet — wherever you are.

Getting Started

To build your SRNE smart power system, start with the RMA7 Touch Screen Display and the CU2 Data Management System — the heart of the SRNE ecosystem.

The CU2 Control Centre integrates seamlessly with your SRNE components and comes equipped with built-in Bluetooth and Wi-Fi connectivity, allowing you to monitor and control your system through the SRNE App or directly from the RMA7 touchscreen.

With six 6A relay outputs, the CU2 can control lighting, fans, and other onboard devices at the touch of a button. It also supports water level and temperature sensors, giving you full visibility of your vehicle or off-grid setup.

For complete power management, add the BS48500 Battery Shunt to connect your leisure battery to the CU2, enabling accurate monitoring of battery status, current draw, and energy usage — all viewable on the RMA7 or through the app.

Together, these components form the foundation of a smart, connected RV or off-grid power system designed for comfort, control, and reliability.
